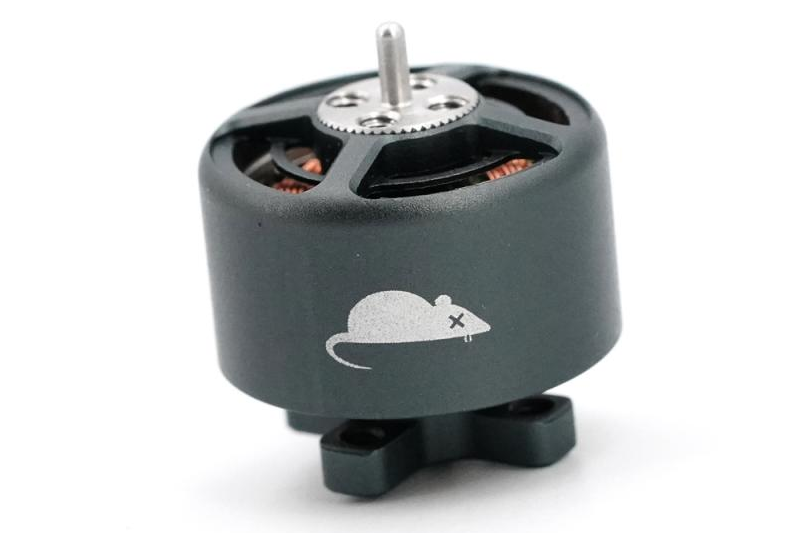

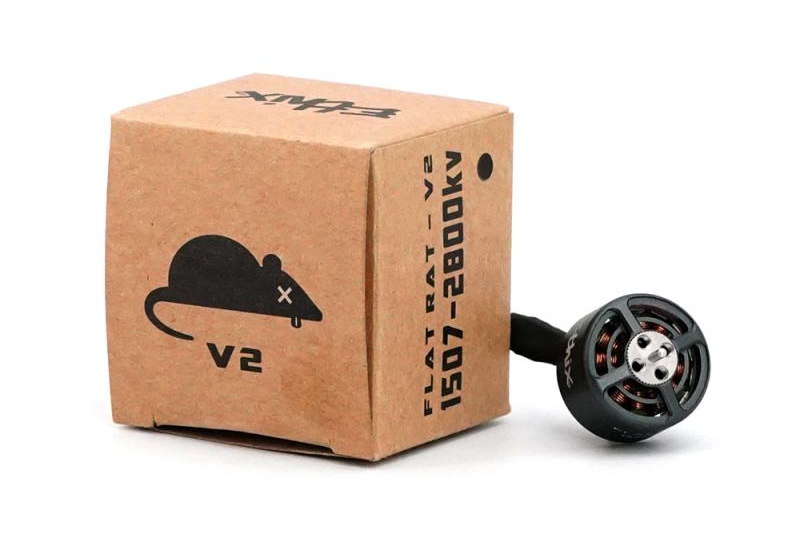

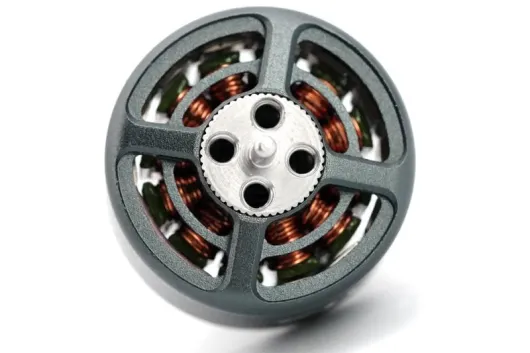

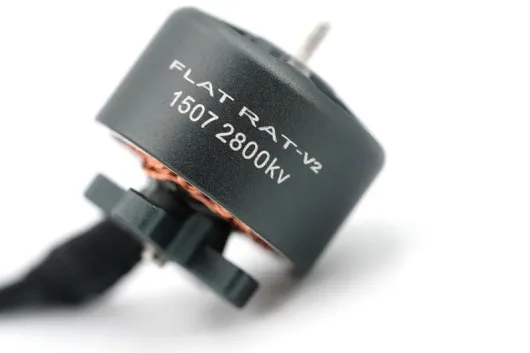

Ethix Flat Rats V2 1507 2800kv T Mount

Technische Daten:

Stator Size (Diameter): φ15mm

Kv: 2800

Magnets N52SH: Curved

Windings: 13.5 turn DLRK

Shaft Length (mm): T mount

Shaft Diameter (mm): 1.5mm

Shaft material: steel

Bearing: 4*2*2.5

Weight (With Wires) (g): 15.5g

Cells (Lipo): 6S

Max Current (A): 15A

Max Burst Current (A): 20A

Internal Resistance (Rm): 0.23mΩ

Wire Spec (AWG): AWG 24#

Base Mounting Pattern: 12x12mm

Base Mounting Thread: M2 Thread

Motor Overall Dimensions: φ19.8mmx17.5mm

Artikelnummer: ETHIXFLAT-TMOUNT
